Technical

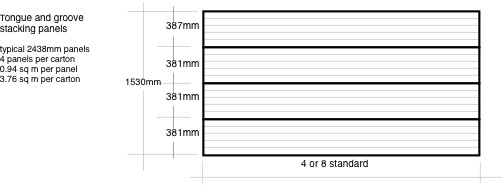

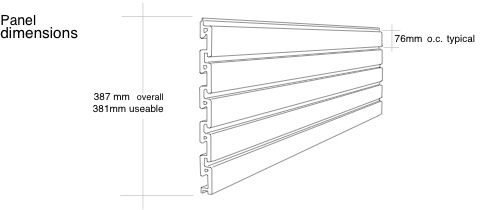

Product dimensions



Product Specifications

Panel Specifications:

Panel Length 2.438 meters

Panel Weight 7.4 kg

Panel Width 38.735 overall / 38.1 cm useable face

Panel Area          0.93 square meters

Panel Thickness          1.75 cm

Slot Specifications:

Slot Spacing 7.62 cm on centre

Slot Groove 0.51 cm

Slot Lip 9.5 mm

Slot Opening 9.5 mm

HangUp Specifications:

         l            h                w

HungUp Dim 5.08cm 1.905 cm              1.27cm

HangUp Spacing 7.62 cm

Hang Up Angle 45 degrees

Fire Rating/Flame Spread

IIB/ 45-775

Loading


Distance from panel face - cm

10.16
